Truss bracket sets

Pick the truss style first, then your beam size and roof pitch. Every set comes in four common pitches; anything else goes through a custom quote.

King-post with diagonals All king-post with diagonals →

Six plates per face: peak, fan, two diagonals and two heels. For trusses with struts from the king post to the rafters.

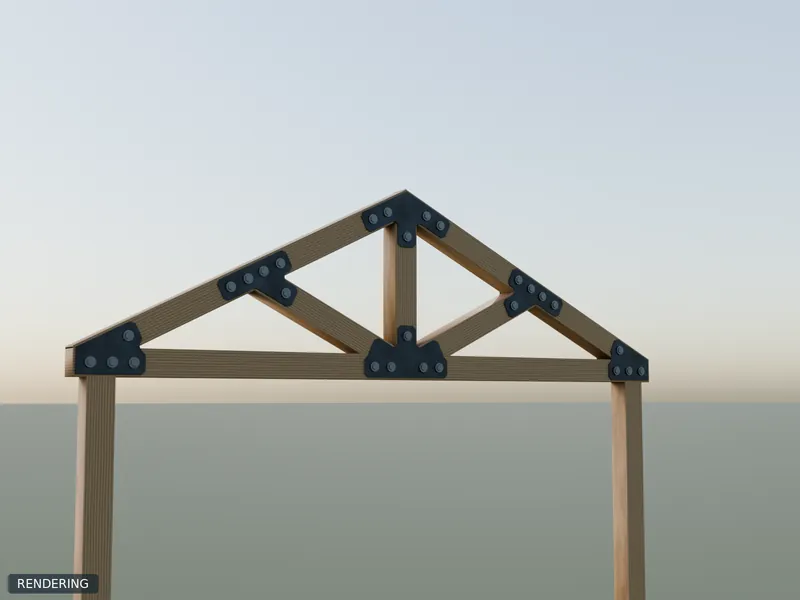

BC-TD4

6-plate king-post truss set with diagonals for 4" beams. 3" strap.

2 sets per truss (one per face)

$209 / set

BC-TD6

6-plate king-post truss set with diagonals for 6" beams. 4" strap.

2 sets per truss (one per face)

$239 / set

BC-TD8

6-plate king-post truss set with diagonals for 8x8 timbers. 5" strap.

2 sets per truss (one per face)

$345 / set

Four plates per face: peak, king-post foot and two heels. A simpler, lower-cost set for trusses without struts.

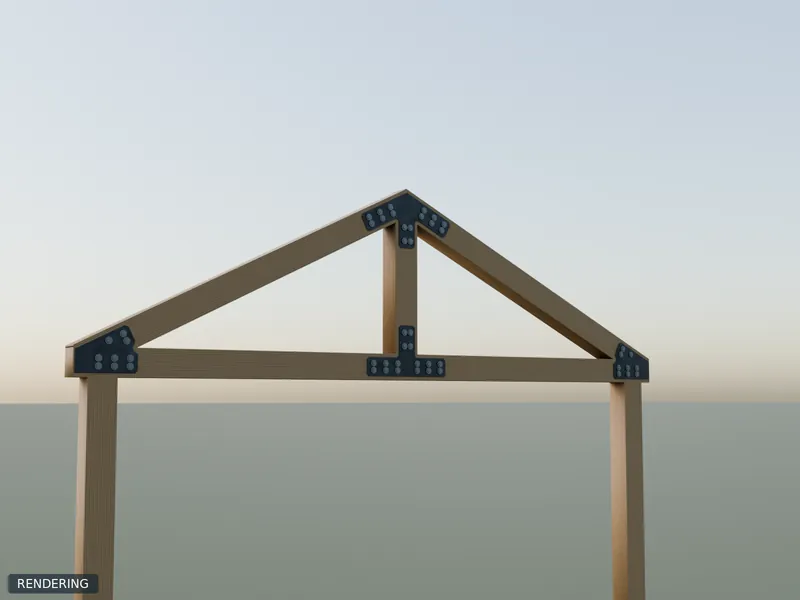

BC-TP6

4-plate king-post set for one face of a 6x6 timber truss.

2 sets per truss (one per face)

$225 / set

BC-TP8

4-plate king-post set for one face of an 8x8 timber truss.

2 sets per truss (one per face)

$245 / set

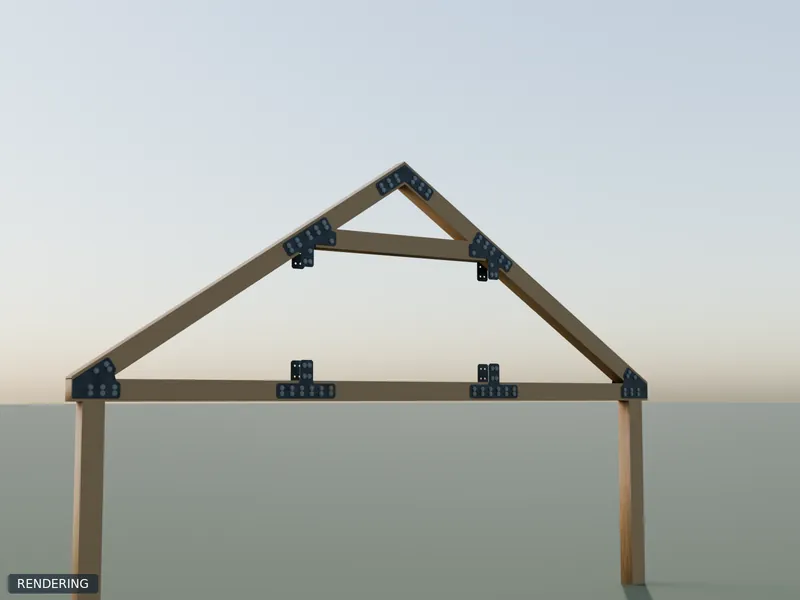

Custom quote

Plate sets for queen-post, Howe, scissor and other truss layouts, cut to your drawing.

How to pick a size: nominal timber sizes are bigger than actual. A 4x4 is usually 3.5", a 6x6 5.5" and an 8x8 7.5". Measure yours.

Hardware not included. Customer supplies lag screws or bolts. Images are renderings and drawings from our own CAD.
