6x6 King-Post Truss Plate Set
4-plate king-post set for one face of a 6x6 timber truss.
You need 2 sets per truss, one for each face. Two trusses = four sets.
Raw steel
Ships raw (unfinished steel). Will rust outdoors if unprotected. Powder coat coming later.
In the set
Plates at 6/12. 50 holes per set; 19.1 lb Standard (7ga), 26.7 lb Heavy (1/4"). Draft sizes from our drawing.
| Plate | Qty | Overall size | Holes | |
|---|---|---|---|---|
| A | Peak | 1 | 22 3/4" × 12 1/4" | 16 |
| B | King-post foot | 1 | 20" × 11" | 16 |
| C | Heel | 2 (mirrored) | 11 3/4" × 8 7/8" | 9 |

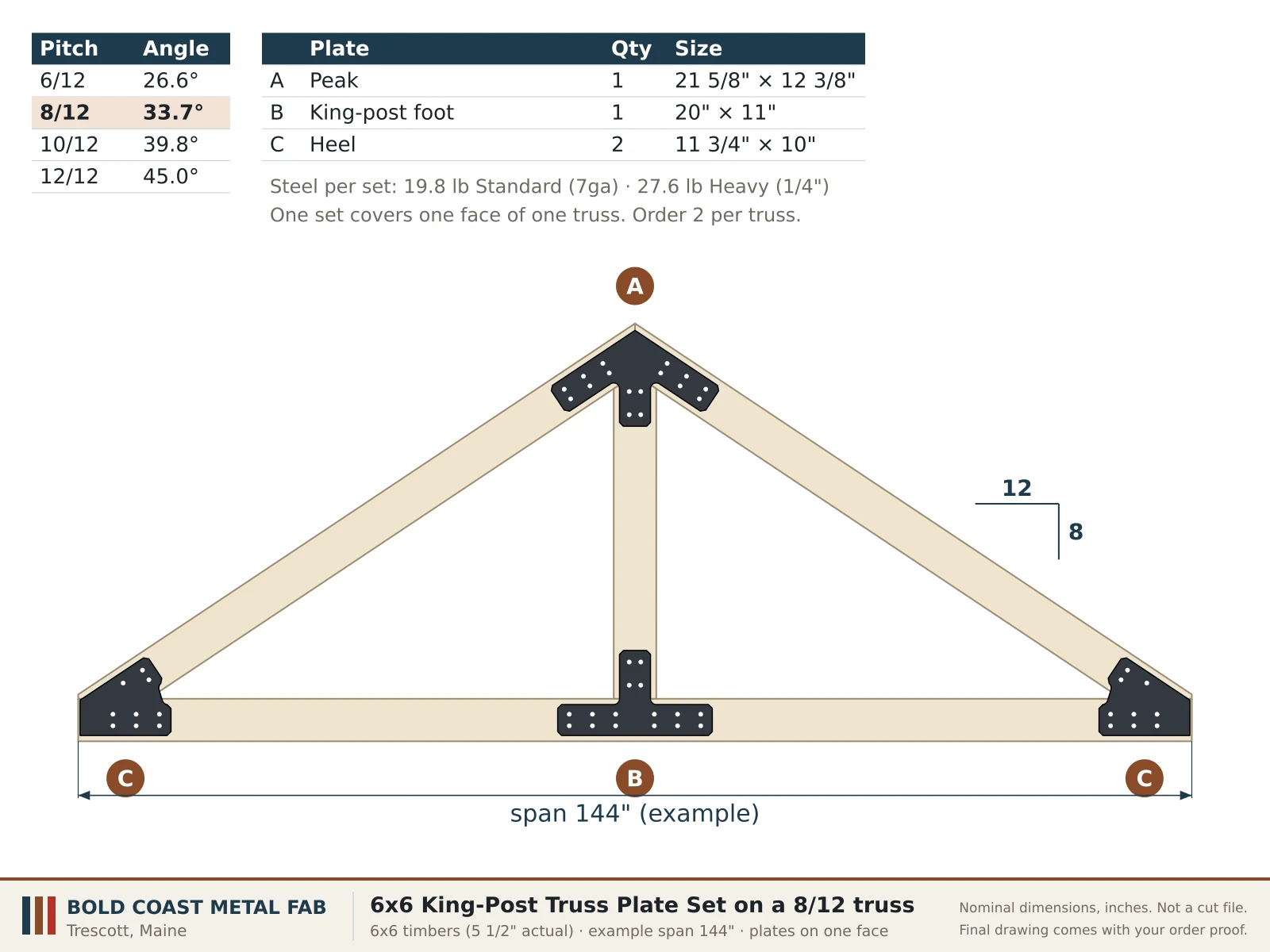

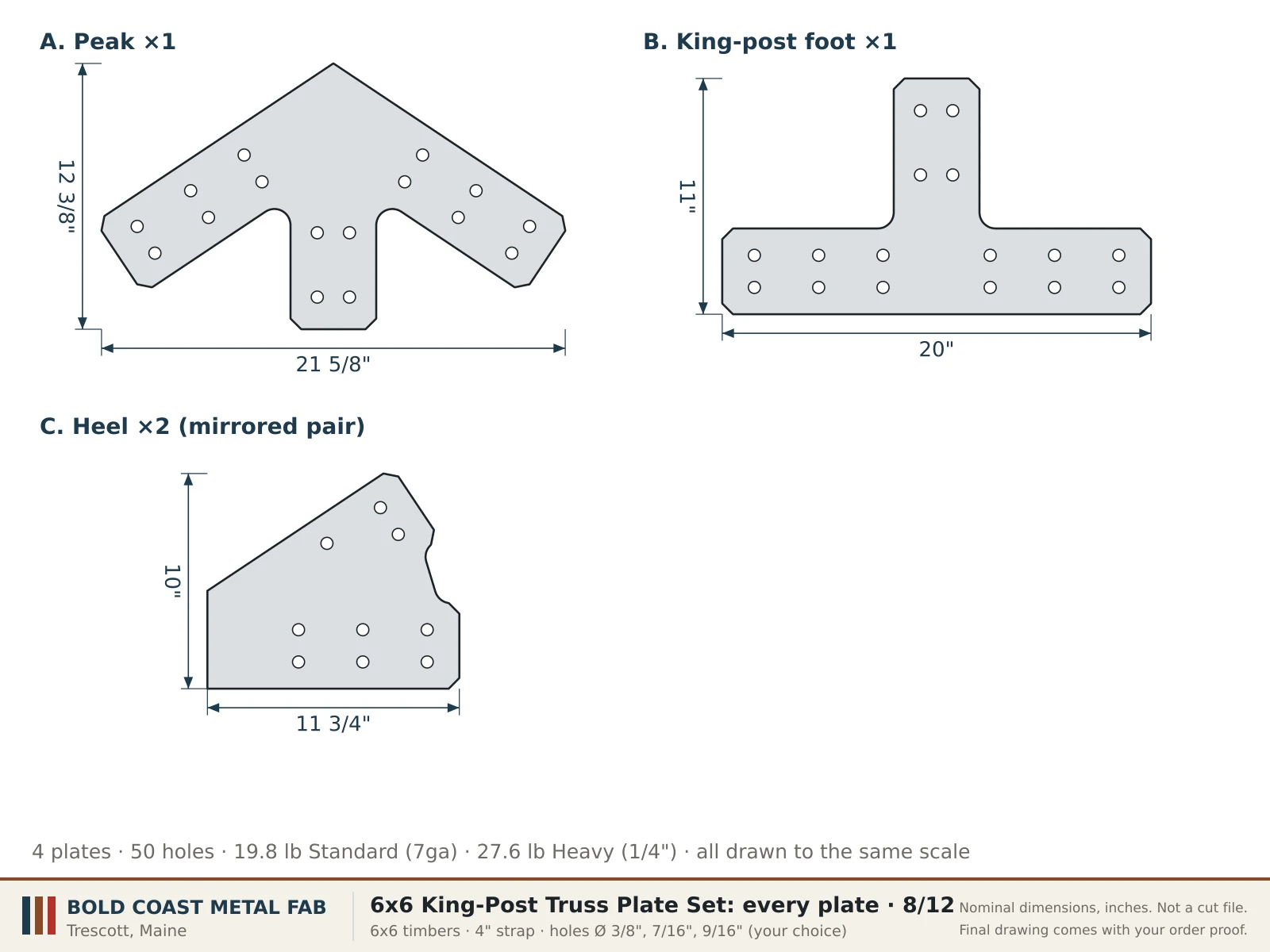

Plates at 8/12. 50 holes per set; 19.8 lb Standard (7ga), 27.6 lb Heavy (1/4"). Draft sizes from our drawing.
| Plate | Qty | Overall size | Holes | |
|---|---|---|---|---|

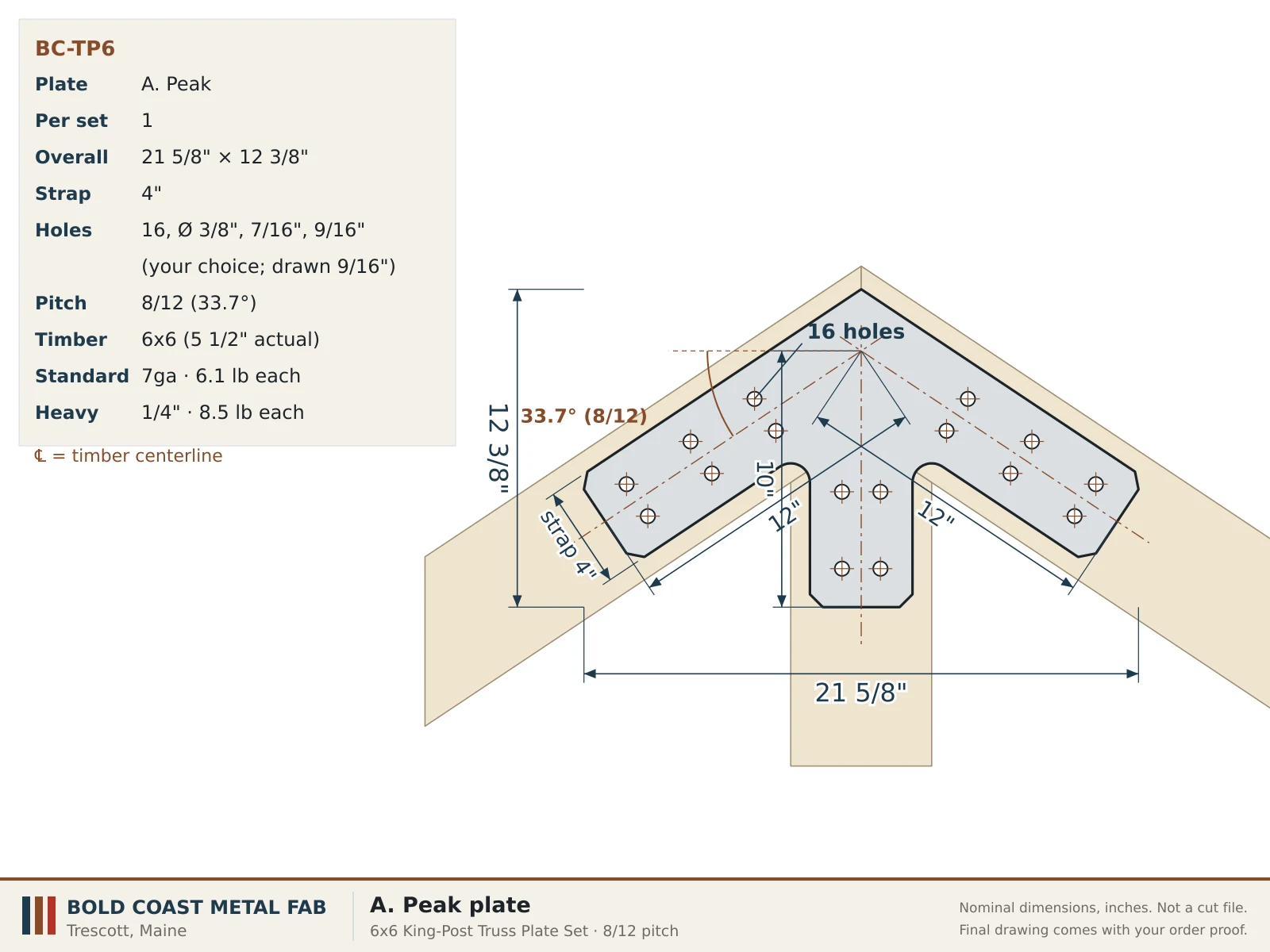

| A | Peak | 1 | 21 5/8" × 12 3/8" | 16 |

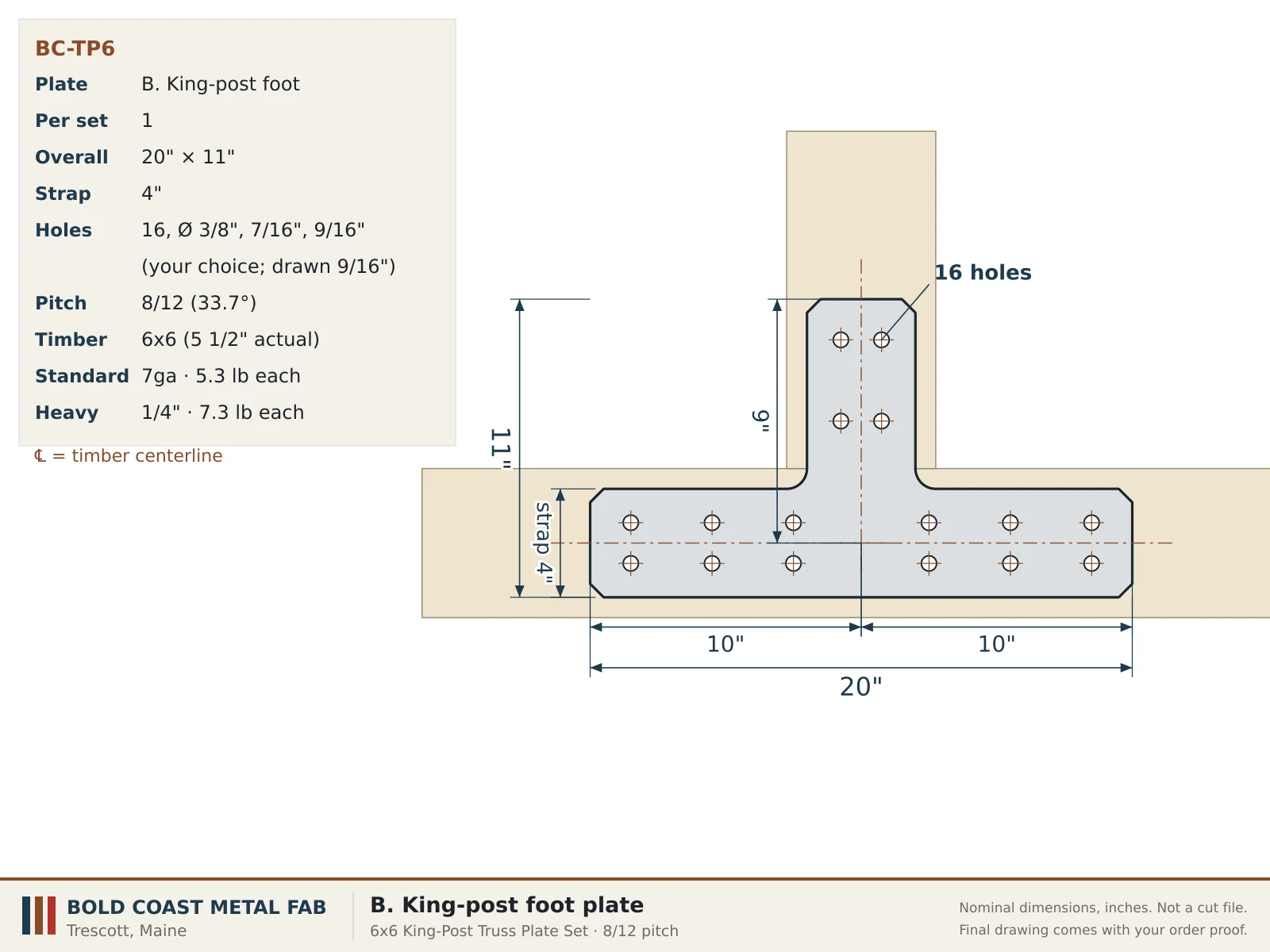

| B | King-post foot | 1 | 20" × 11" | 16 |

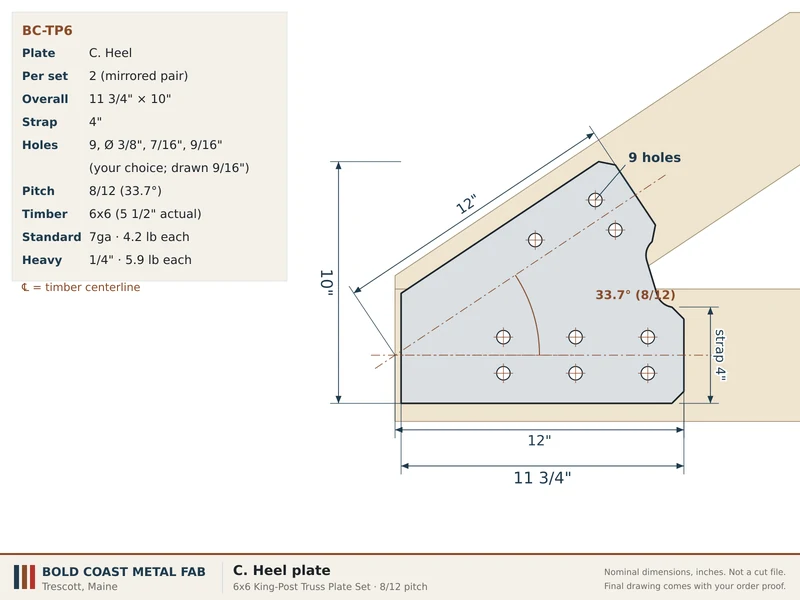

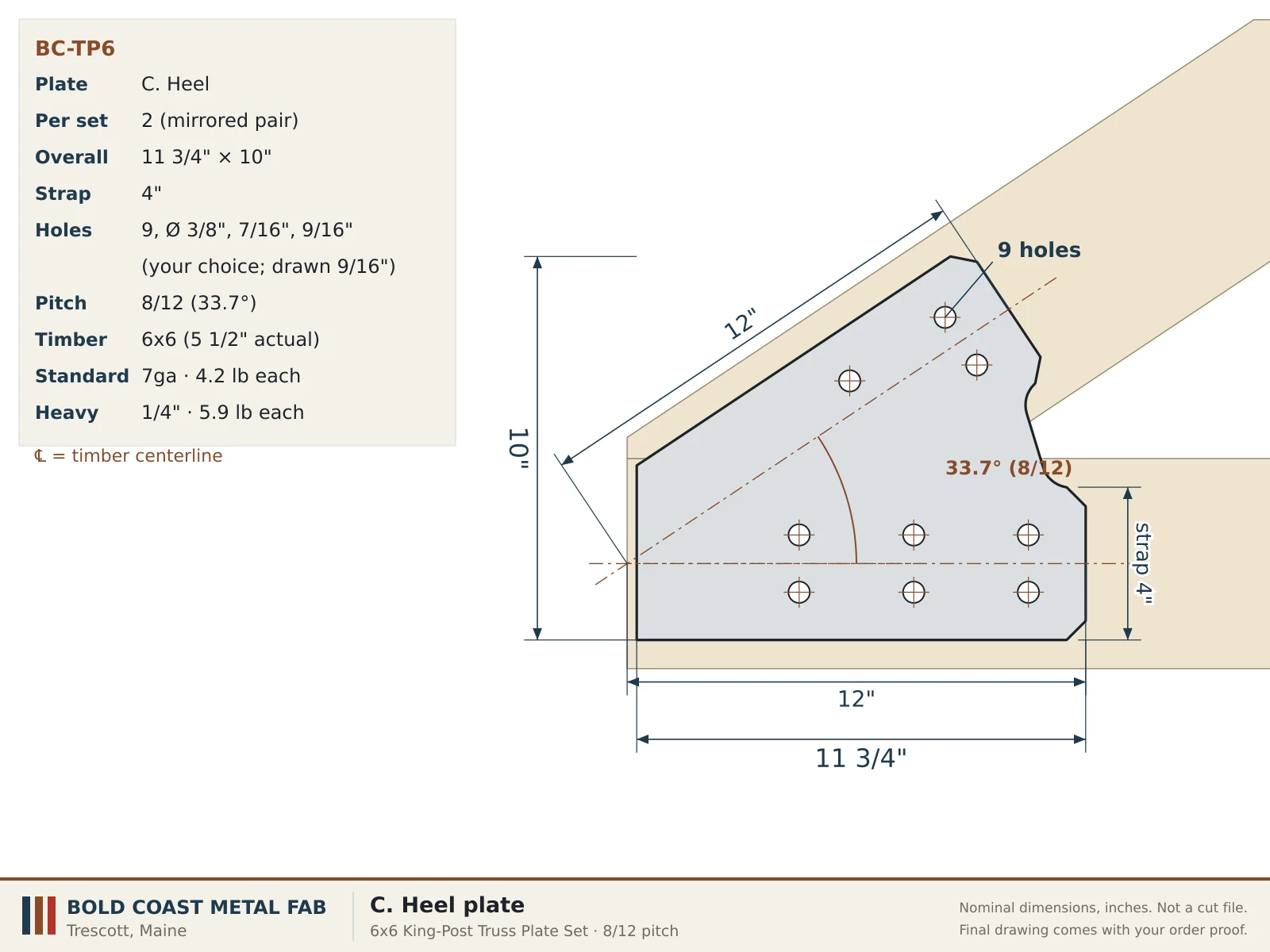

| C | Heel | 2 (mirrored) | 11 3/4" × 10" | 9 |
Plates at 10/12. 52 holes per set; 20.3 lb Standard (7ga), 28.3 lb Heavy (1/4"). Draft sizes from our drawing.
| Plate | Qty | Overall size | Holes | |
|---|---|---|---|---|
| A | Peak | 1 | 20 3/8" × 12 5/8" | 16 |
| B | King-post foot | 1 | 20" × 11" | 16 |
| C | Heel | 2 (mirrored) | 11 3/4" × 10 7/8" | 10 |
Plates at 12/12. 52 holes per set; 20.7 lb Standard (7ga), 28.9 lb Heavy (1/4"). Draft sizes from our drawing.
| Plate | Qty | Overall size | Holes | |
|---|---|---|---|---|
| A | Peak | 1 | 19 1/8" × 12 7/8" | 14 |
| B | King-post foot | 1 | 20" × 11" | 16 |
| C | Heel | 2 (mirrored) | 11 3/4" × 11 1/2" | 11 |
Specs
| SKU | BC-TP6 |
|---|---|
| In the box | 4 plates (one face of one truss) |
| Fits | 6x6 timbers (actual 5.5") |
| Roof pitchs | 6/12, 8/12, 10/12, 12/12. Other pitches by custom quote. |
| Plate | Standard (7ga): 7 gauge A36, 0.1793" (about 3/16"). Heavy (1/4"): 1/4" A36. Priced by quote (about +$80–$90 on a 6-plate set). |
| Hole size | Your choice: 3/8" (about 5/16" lag screws), 7/16" (about 3/8" lag screws or bolts), 9/16" (about 1/2" lag screws or bolts). |
| Hardware | Hardware not included. Customer supplies lag screws or bolts. |
| Finish | Raw, deburred. Powder coat coming later. |
| Steel weight | 19.8 lb Standard (7ga), 27.6 lb Heavy (1/4") per set, from the draft drawing at 8/12 |
| Packed weight | ~24–27 lb (estimate) |
| Ships | Default ship-by mid-January 2027, from ZIP 04652 |
Measure first
Nominal timber sizes are not actual sizes. A 6x6 is usually 5.5" and an 8x8 is usually 7.5". Measure your timbers and tell us if they're different. Odd sizes and pitches go through the custom quote, and we send a proof before we cut.
Images are renderings and drawings from our own CAD until the first sets are cut. Raw steel color and mill scale will vary.
Questions
How many do I need?
Two sets per truss, one for each face.
Do these brackets carry load?
No. They are decorative only. Your framing must stand on its own without them.
Is hardware included?
No. Hardware not included. Customer supplies lag screws or bolts. Pick the hole size that suits your fasteners: 3/8" for about 5/16" lag screws, 7/16" for about 3/8" lag screws or bolts, 9/16" for about 1/2" lag screws or bolts.
What finish?
Raw unfinished steel. It will rust outdoors if left unprotected. Powder coat is coming later.
When does it ship?
Default ship-by is mid-January 2027. We confirm a date for your place in the queue.
