Custom quote

Queen-post, Howe & other truss plates

Plate sets for queen-post, Howe, scissor and other truss layouts, cut to your drawing.

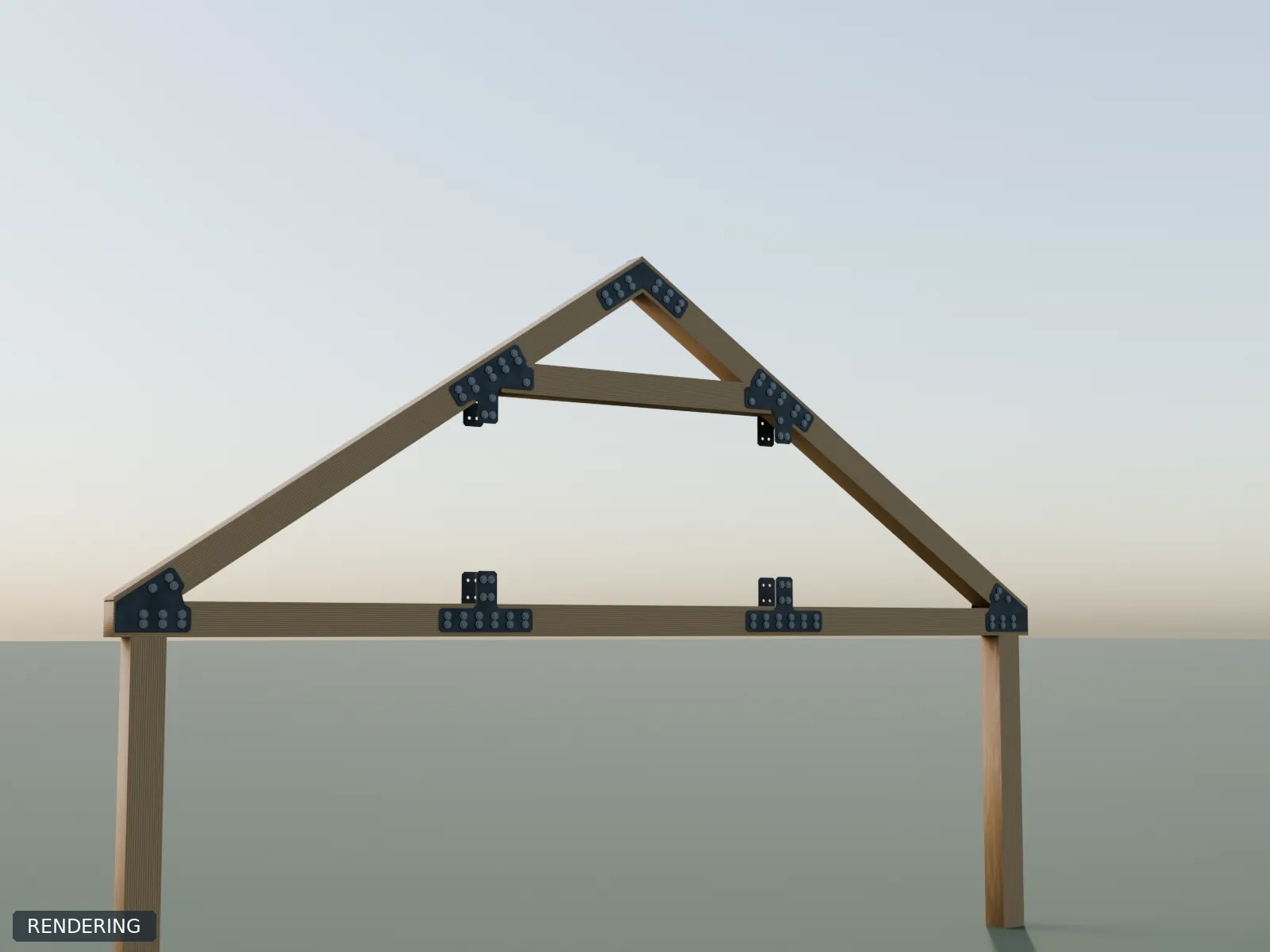

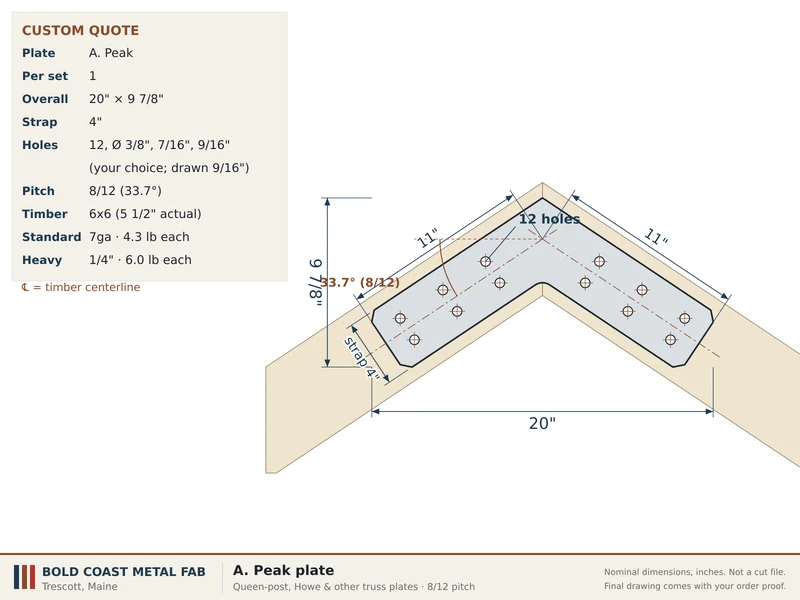

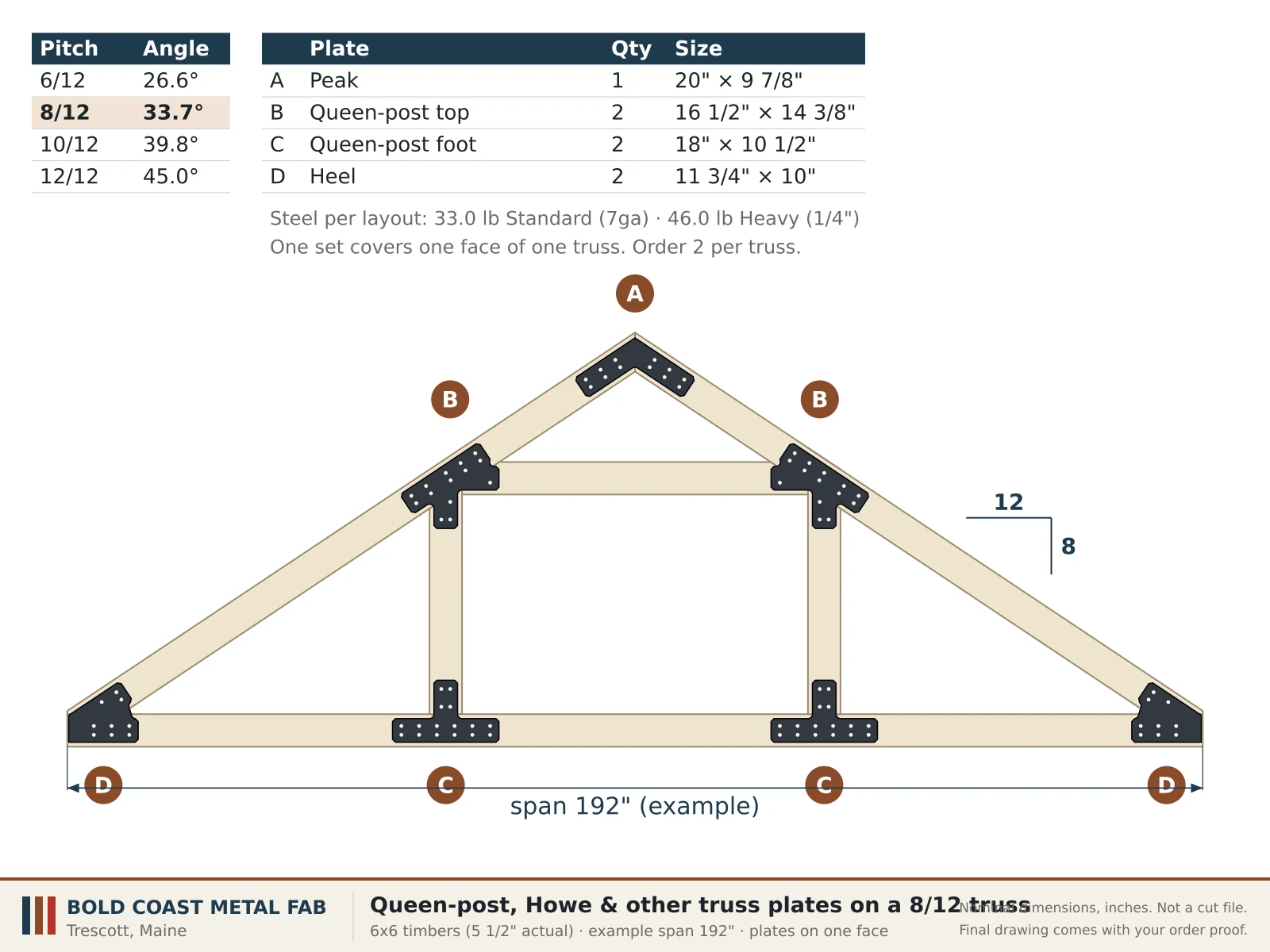

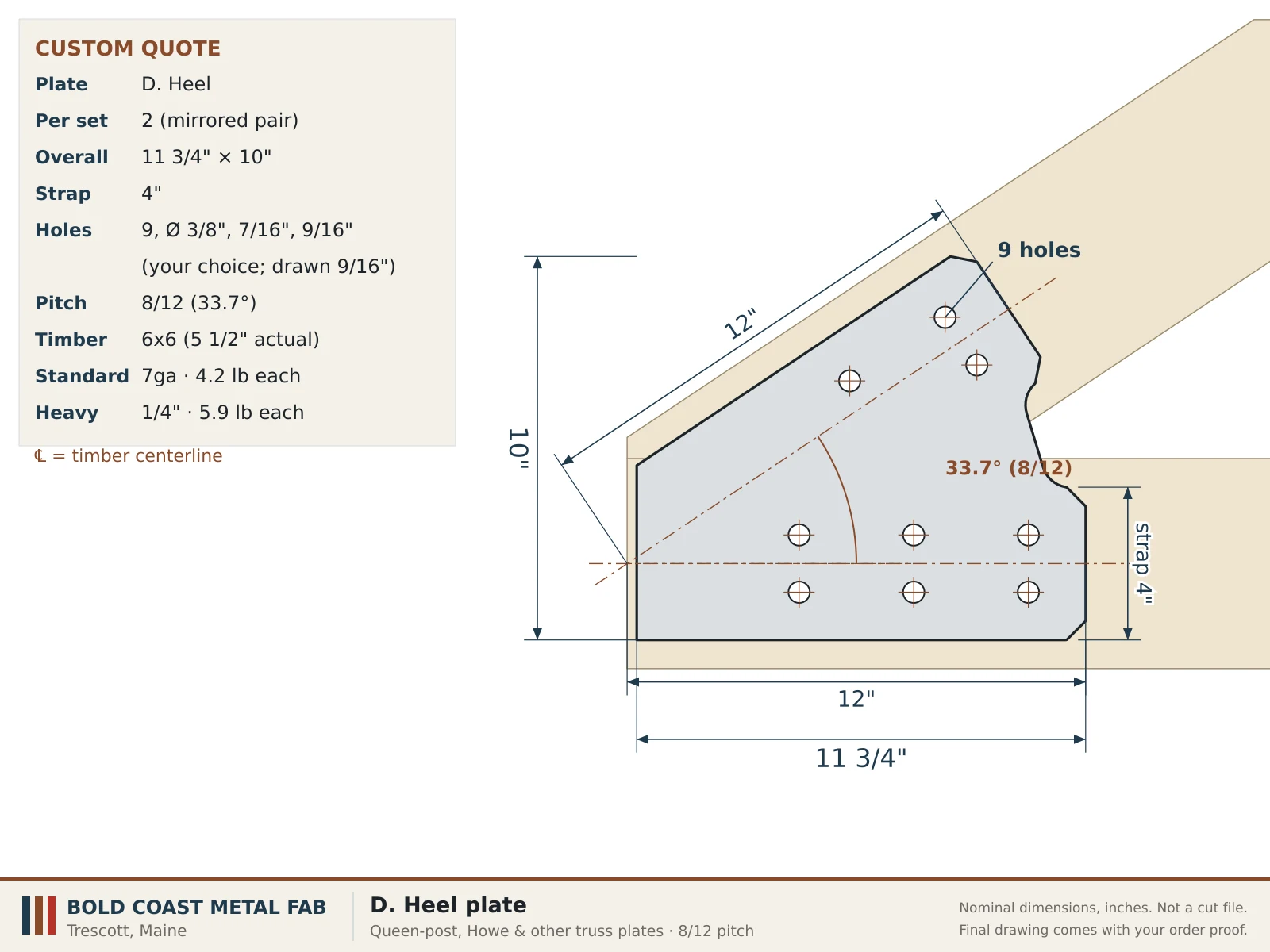

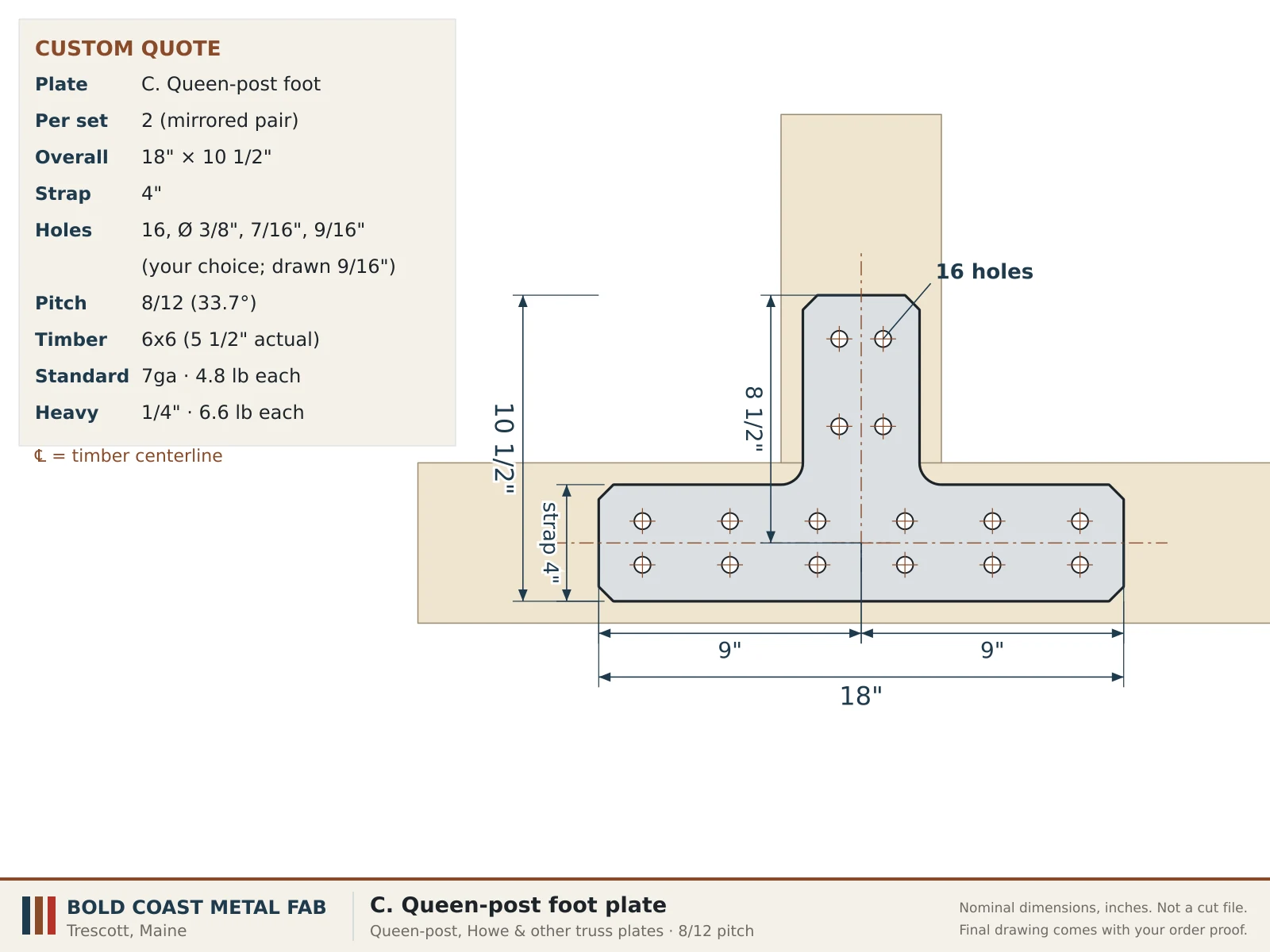

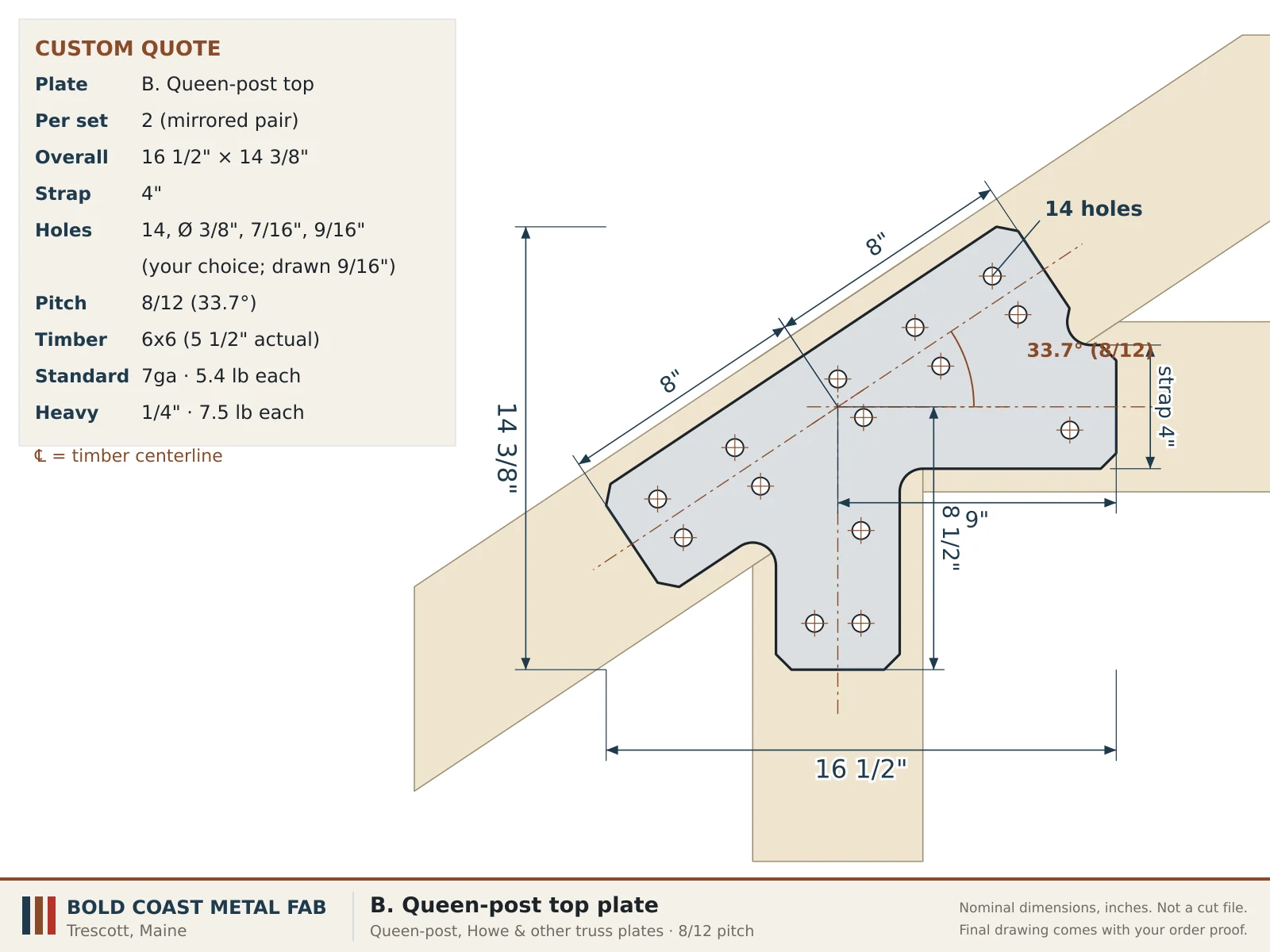

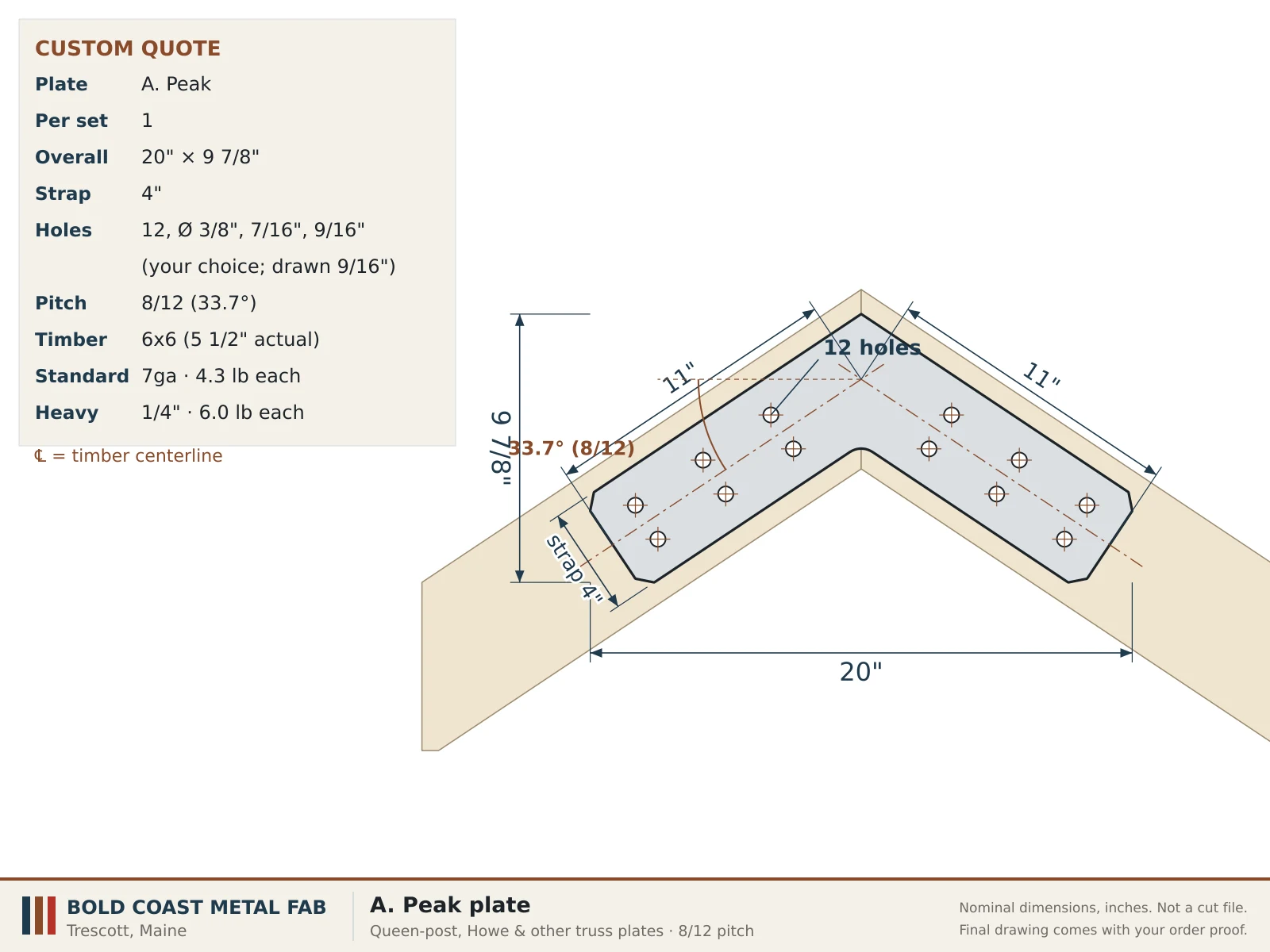

Shown: a queen-post truss on 6x6 timbers at 8/12. Seven plates per face. These are representative drawings and renderings; we draw yours to your timbers.

What we need from you

• Truss style, or a photo or sketch of the truss
• Timber sizes, measured
• Roof pitch or angle
• Span, and how many trusses

Plate: Standard (7ga) or Heavy (1/4"). Holes: 3/8", 7/16", 9/16". Hardware not included. Customer supplies lag screws or bolts.

Start a quote for queen-post, howe & other truss plates

How custom work goes

1. Send your sizes, a sketch or a photo on the quote form.
2. We reply within one business day with a price and a dimensioned drawing.
3. A deposit or design fee starts the work. Nothing is cut until you approve the proof.

How to pick a size: nominal timber sizes are bigger than actual. A 4x4 is usually 3.5", a 6x6 5.5" and an 8x8 7.5". Measure yours.
