Custom quote

Straight & splice plates

A straight plate across a joint where two beams meet end to end.

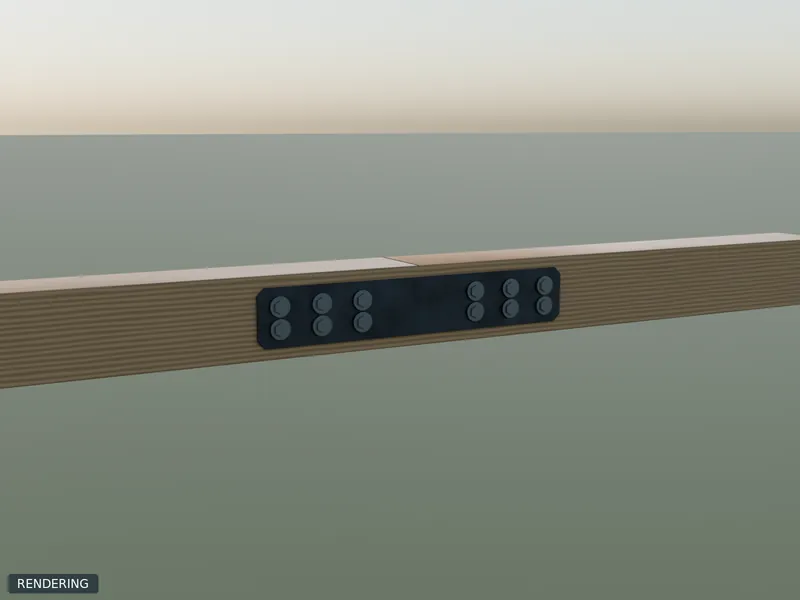

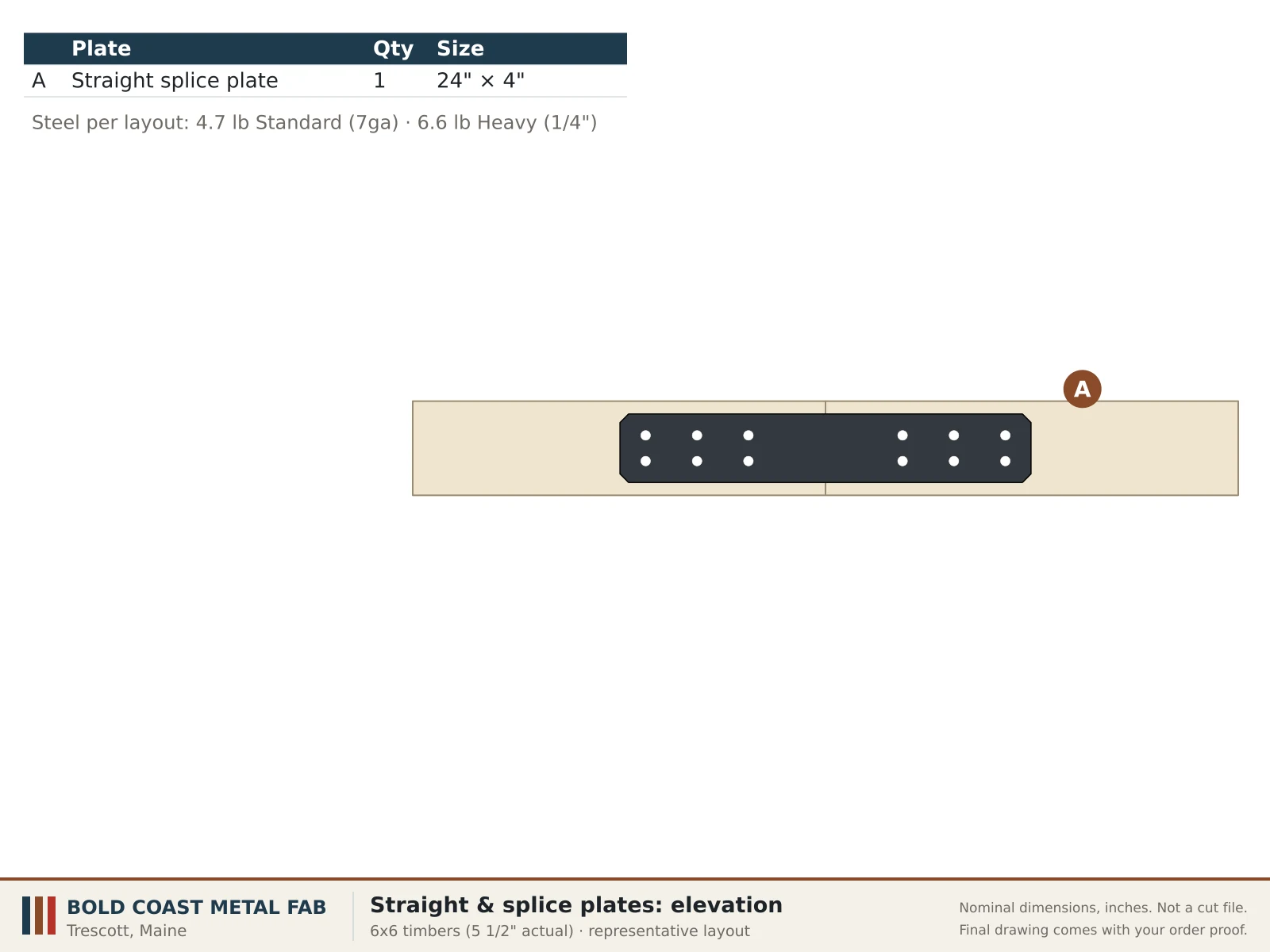

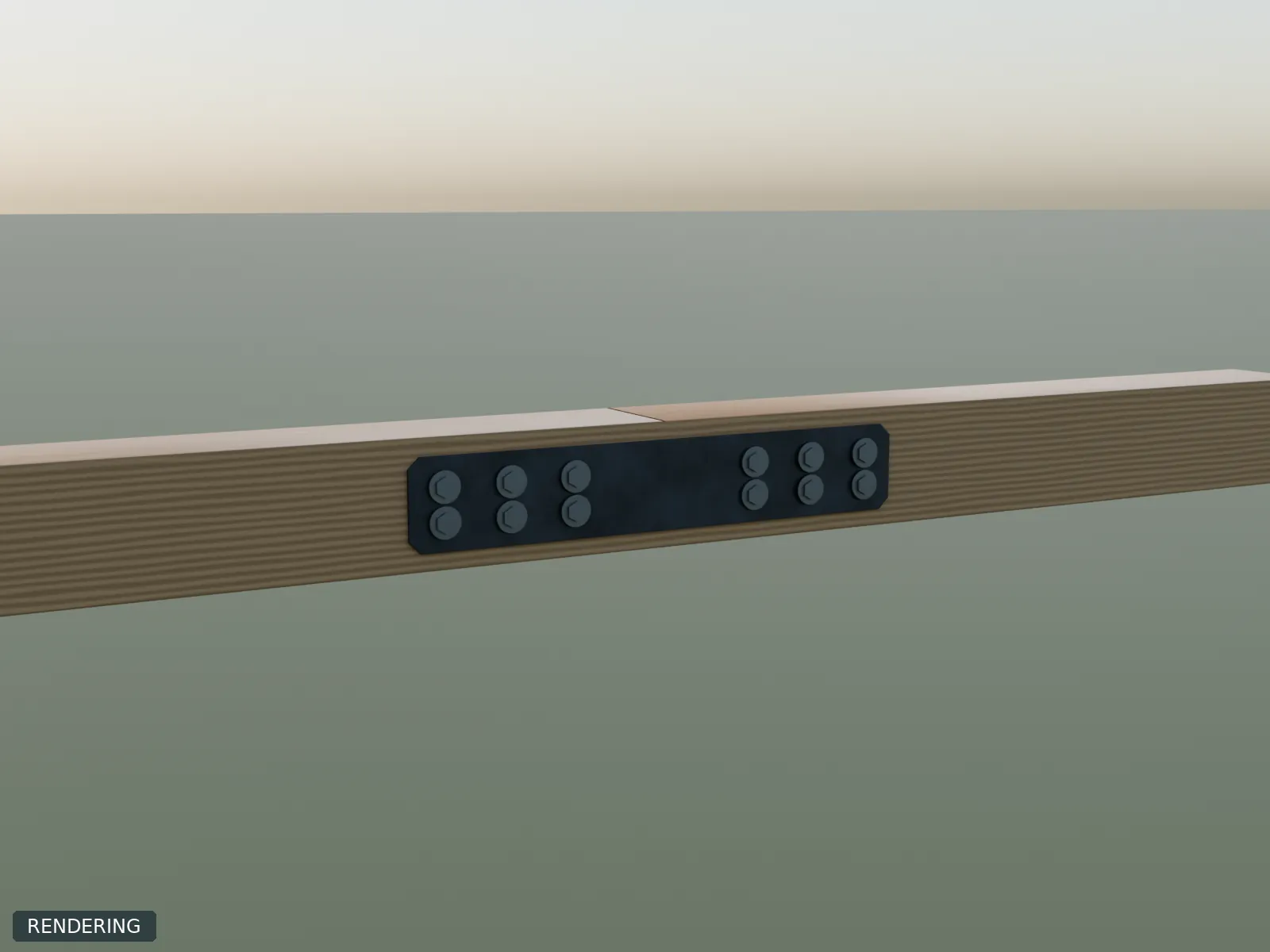

Shown: 24" plate on a 6x6 beam joint. These are representative drawings and renderings; we draw yours to your timbers.

What we need from you

• Beam size, measured
• Plate length and width
• Number of plates

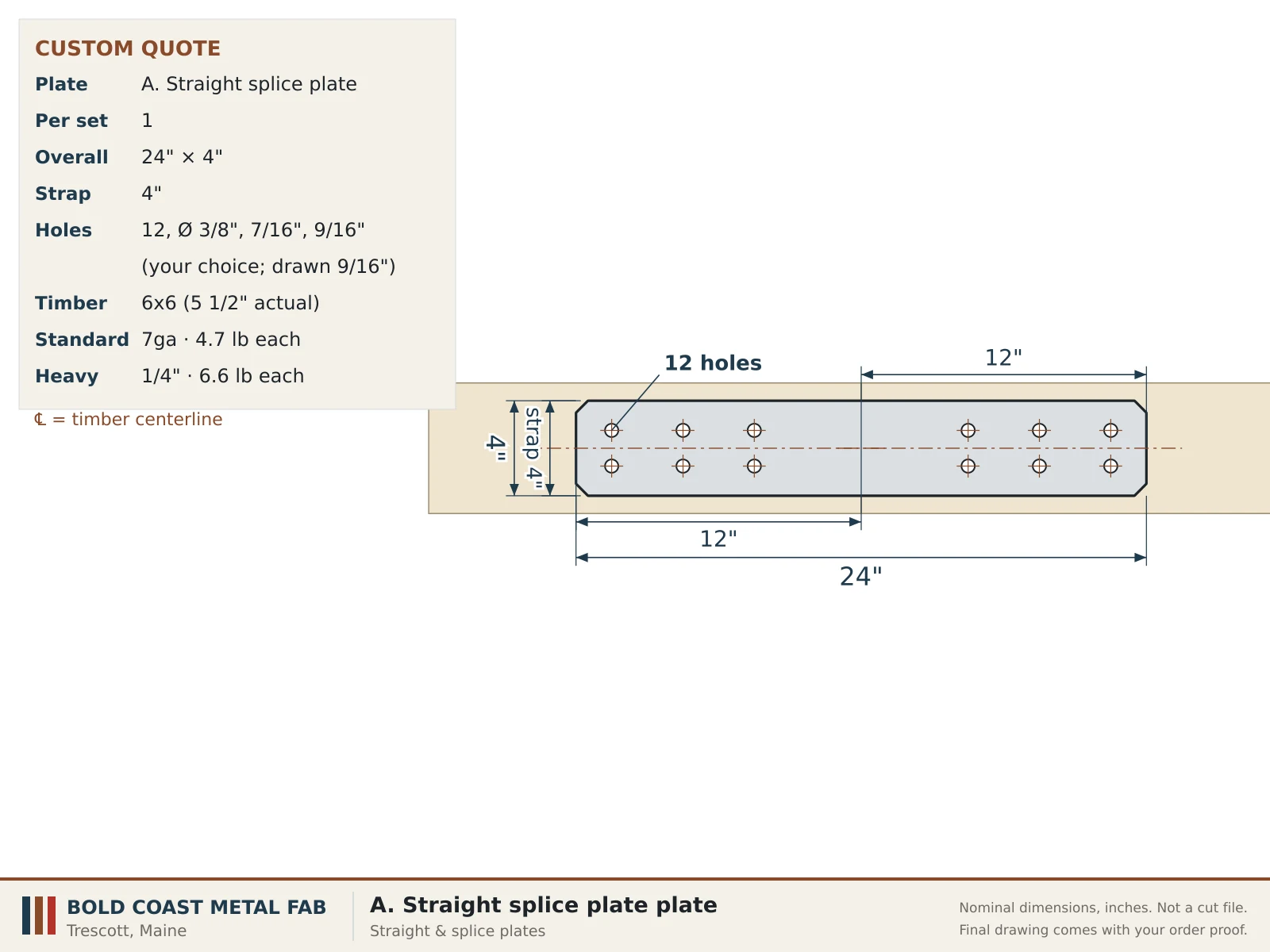

Plate: Standard (7ga) or Heavy (1/4"). Holes: 3/8", 7/16", 9/16". Hardware not included. Customer supplies lag screws or bolts.

Start a quote for straight & splice plates

How custom work goes

1. Send your sizes, a sketch or a photo on the quote form.
2. We reply within one business day with a price and a dimensioned drawing.
3. A deposit or design fee starts the work. Nothing is cut until you approve the proof.

How to pick a size: nominal timber sizes are bigger than actual. A 4x4 is usually 3.5", a 6x6 5.5" and an 8x8 7.5". Measure yours.
